Alcatel OmniPCX Enterprise (Ethernet Real Time). Параметры соединения и формат данных SMDR/CDR
Данные ниже соответствуют только программе Advanced PBX Data Logger и могут быть не применимы для других программных продуктов.
Overviewe
The real time accounting (or on the fly) over Ethernet has been designed to emit tickets towards an
external accounting application. These tickets can be masked on the level of the number emitted according to the type of
communication (normal, business and personal). The type of tickets (public, private, outgoing, incoming and so on) can be filtered.
The format of the tickets is identical to that of the tickets stored in compressed form (/usr4/account/*.DAT).
IMPORTANT: The use of the real time accounting is exclusive: the selection of the tickets via Ethernet prohibits the
use of the output of the tickets on V24 interface and vice-versa.
Requirements
The following software locks (license) must be available:
- V24MeteringOnFly (Number 51)
- AccountingEthernet (Number 83)
PCX settings
Configure the Accounting objects as follows:
Applications -> Accounting
Attributes:
Internal Accounting = Yes
Real Time Tickets Output = Ethernet
WARNING: Accounting filters can be set so that only the required tickets are emitted. Select among the list below only the type of tickets exploited by the external application:
ApplicationS -> Accounting
Attributes: Real-Time Tick. Outp. Parameters
Filters:
Public Outgoing PCX calls (The major outgoing ticket when PCX is stand alone)
Public Outgoing Network Calls
PCX Network Calls (2)
Private Outgoing PCX Calls
Private Outgoing Network Calls
Public Incoming PCX Calls
Public Incoming Network Calls
Private Incoming PCX Calls
Private Incoming Network Calls
Priority Incoming Calls
Data Outgoing/Incoming Calls
Public Outgoing 0 Unit Calls (1)
Non Ticketed User
PCX PCX Calls (2)
PCX Transit Calls (2)
PCX/Netw Count. Tick. Duration 0
CDR (Tickets) Management (2)
Configuring PBX Data Logger

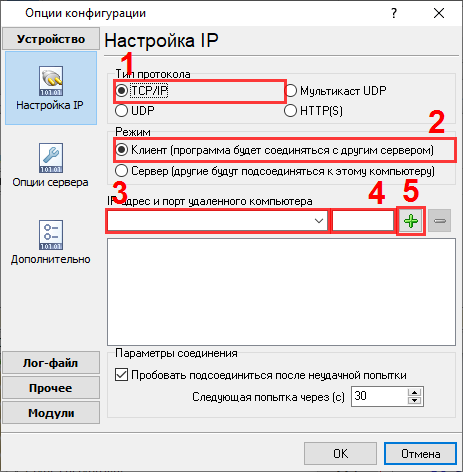

Our software should work in the TCP client mode. It means that our software will initiate connection with the PBX and the PBX will work as a server. Add one or several PBX IP addresses here (the IP address of the Alcatel OmniPCX Enterprise). The port number should match the port that you have defined within the PBX (2533 in the example below).
Данные, извлекаемые PBX Data Logger
| Описание | Тип данных | Имя колонки |
|---|
| Called number | string | DIALED_PHONE |
| Charged number | string | EXT |
| Charged user name | string | CHARGED_USER_NAME |
| Charged Стоимость center | string | CHARGED_COST_CENTER |
| Charged company | string | CHARGED_COMPANY |
| Charged party Узел | string | CHARGED_PARTY_NODE |
| Subaddress | string | SUBADDRESS |
| Вызывающий телефон | string | CALLER_PHONE |
| Тип звонка | string | CALL_TYPE |
| Тип звонка name | string | FLAG3 |
| Направление | string | DIRECTION |
| Стоимость Тип | string | COST_TYPE |
| End time | datetime | END_TIME |
| Charge units | string | CHARGE_UNITS |
| Стоимость info | string | COST_INFO |
| Длительность звонка (с) | integer | CALL_DURATION_S |
| Длительность звонка | datetime | CALL_DURATION |
| Линия identity | string | TRUNK_IDENTITY |
| Линия group identity | string | TRUNK_GROUP_IDENTITY |
| Линия | string | TRUNK |
| Access code | string | AUTH |
| Источник facilities | string | EXTERNAL_FACILITIES |
| Internal facilities | string | INTERNAL_FACILITIES |
| Initial Набранный номер | string | INITIAL_DIALED_PHONE |
| Длительность ожидания ответа (с) | integer | RING_S |
| Длительность ожидания ответа | datetime | RING |
| Effective Длительность звонка (с) | integer | DURATION_EFFECTIVE_S |
| Redirected call indicator | string | FLAG2 |
| Время звонка | datetime | CALL_TIME |
| Acting Расширение | string | ACTING_EXT |
| Called Расширение Узел | string | CALLED_EXT_NODE |
| Calling Расширение Узел | string | CALLIG_EXT_NODE |
| Initial Расширение Узел | string | INITIAL_EXT_NODE |
| Acting Расширение Узел | string | ACTING_EXT_NODE |
