Aastra Intelligate IP SMDR. Параметры соединения и формат данных SMDR/CDR
Данные ниже соответствуют только программе Advanced PBX Data Logger и могут быть не применимы для других программных продуктов.
OIP server
The call data is stored as a file on the OIP server if so selected during the user-defined installation of the OIP server. In the standard settings a new file is written daily in the directory ...\aastra\oip\tax.
The files are created in .csv format. The file name is taxdata-jjjj-mm-dd.tax, with representing year-month-day. The Call Logging settings can be made in the OIP service Call Logging Driver.
In this case you can create the "File" data source in our software and process "tax" files.
Call logging over IP

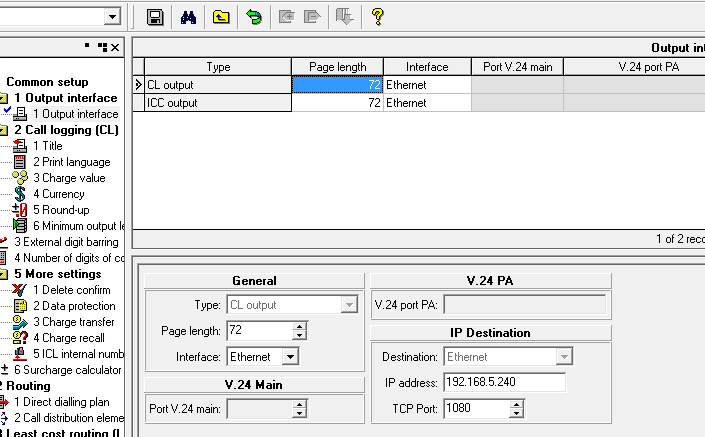

The PBX can send the SMDR directly to the Advanced PBX Data Logger. Look at the settings below (Aims, AMS for Aastra 400).

Configuring PBX Data Logger
Our software should work in the TCP client mode. It means that our software will initiate connection with the PBX and the PBX will work as a server. Add one or several PBX IP addresses here (the IP address of the Aastra Intelligate). The port number should match the port that you have defined within the PBX (1080 in the example below).
1080
1080
Данные, извлекаемые PBX Data Logger
Описание | Тип данных | Имя колонки |
User number | string | FLAG1 |
Стоимость center number | string | FLAG2 |
Тип звонка | string | CALL_TYPE |
Направление code | string | DIRECTION_TYPE |
Направление | string | DIRECTION |
Расширение | string | EXT |
Тип of network access | string | NET_ACCESS_TYPE |
Тип of network access | string | NET_ACCESS |
Call handling code | string | CALL_HANDLING_TYPE |
Call handling | string | CALL_HANDLING |
Время звонка | datetime | CALL_TIME |
Длительность звонка | datetime | CALL_DURATION |
Длительность звонка (с) | integer | CALL_DURATION_S |
Стоимость | float | COST |
Call metering pulses | string | FLAG4 |
Channel group/Линия | string | TRUNK |
Вызывающий телефон | string | CALLER_PHONE |
Вызывающий телефон 2 | string | FLAG3 |
Набранный номер | string | DIALED_PHONE |
Длительность ожидания ответа (с) | integer | RING_S |
Длительность ожидания ответа | datetime | RING |
Sequence number | string | FLAG5 |
Serial number | string | FLAG6 |
Замечание: Продукты и компании, указанные здесь используются только для обозначение и идентификации и могут быть торговыми и/или зарегистрированными марками соответствующих компаний.
