NEC SL1000. Параметры соединения и формат данных SMDR/CDR

Данные ниже соответствуют только программе Advanced PBX Data Logger и могут быть не применимы для других программных продуктов.

NEC SL1000/NEC SL1100

This PBX outputs SMDR data via IP. Here are the items you need to do to get the SMDR output from SL1000 or SL1100 CPU.

NEC SL Programming Commands

PROG 10-12-01 and 10-12-02: confirm your IP address given for the CPU. It should be the static IP address.
PROG 10-20-05: SMDR Output Port (input: 60010)
PROG 14-01-06: (SMDR Print-Out for Trunks): Enable
PROG 15-01-03: (SMDR Print-Out for Extensions): Enable
PROG 35-01-01 (Output Port Type): select "LAN"
PROG 35-01-04 (Omit Digits): 0
PROG 35-01-05 (Minimum Digits): 0
PROG 35-01-06 (Minimum Duration): 0
PROG 35-01-07 (Minimum Ring Duration): 0
PROG 35-01-08 (SMDR Format Type): select "General Overseas"
PROG 35-02-01 (Toll Restriction Calls): 1 - Enable
PROG 35-02-02 (PBX Calls): 1 - Enable
PROG 35-02-03 (Trunk Number/Name): Number
PROG 35-02-04 (Daily Summary): 0 - Disable
PROG 35-02-05 (Weekly Summary): 0 - Disable
PROG 35-02-06 (Monthly Summary): 0 - Disable
PROG 35-02-07 (Toll Charge Cost): 0 - Disable
PROG 35-02-08 (Incoming Calls): 1 - Enable
PROG 35-02-09 (Ext Name/Number): Number
PROG 35-02-10 (All Lines Busy): 0 - Disable
PROG 35-02-11 (Walking Toll Restriction Table Number): 1 - Enable
PROG 35-02-12 (DDI Table Name): 0 - Disable
PROG 35-02-13 (Caller ID Output when DDI to Trunk): 0 - Disable
PROG 35-02-14 (Date): 1 - Enable
PROG 35-02-15 (Caller ID/DDI Number): select "Caller ID"
PROG 35-02-16 (Trunk Name/Received Dialled Number): select "Both"
PROG 35-02-17 (Account Code/Caller ID Name): select "Account Code"
PROG 35-02-18 (Caller ID Name Output Method): select "Same Line"
PROG 35-02-19 (Dialled Number Output Format): select "Display from first digit"
PROG 35-02-20 (External Call Forward Output): select "Call Forward Destination"
PROG 80-05-01 (Locale): Eurpoean

Repeat for all the trunks

Reboot SL1000/SL1100

You can easily change the setting above using the WebPro interface.

  1. Open your favorite browser.
  2. Navigate to the
  3. Login using the installer name and password (by default: sltech/12345678).
  4. Change the settings above.
  5. Apply the changed settings.

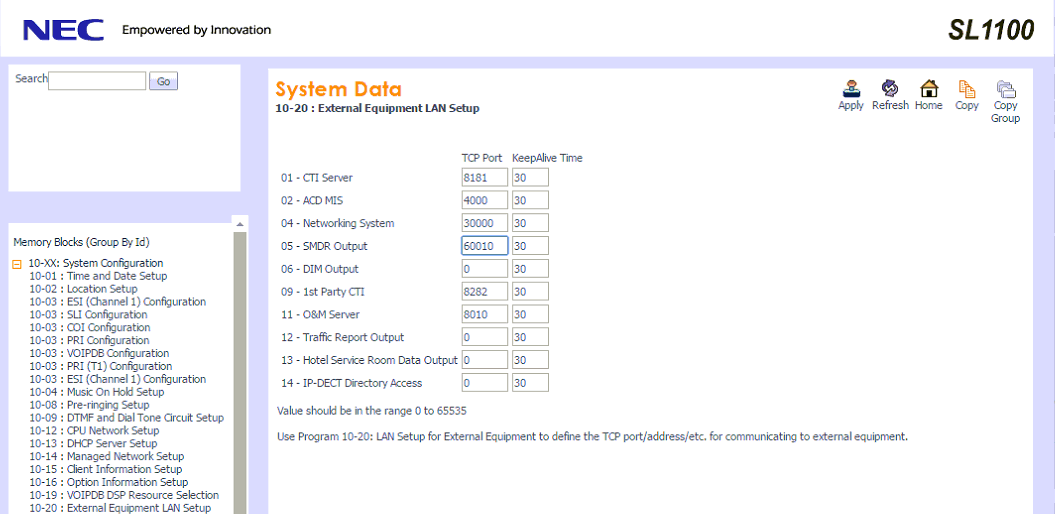

LAN Setup

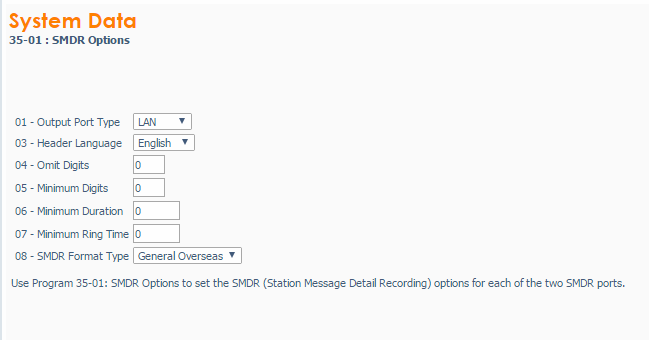

SMDR Output

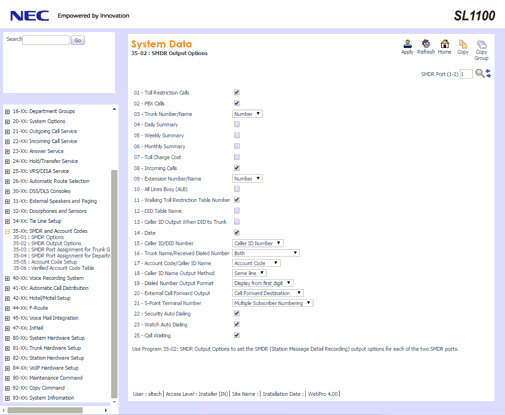

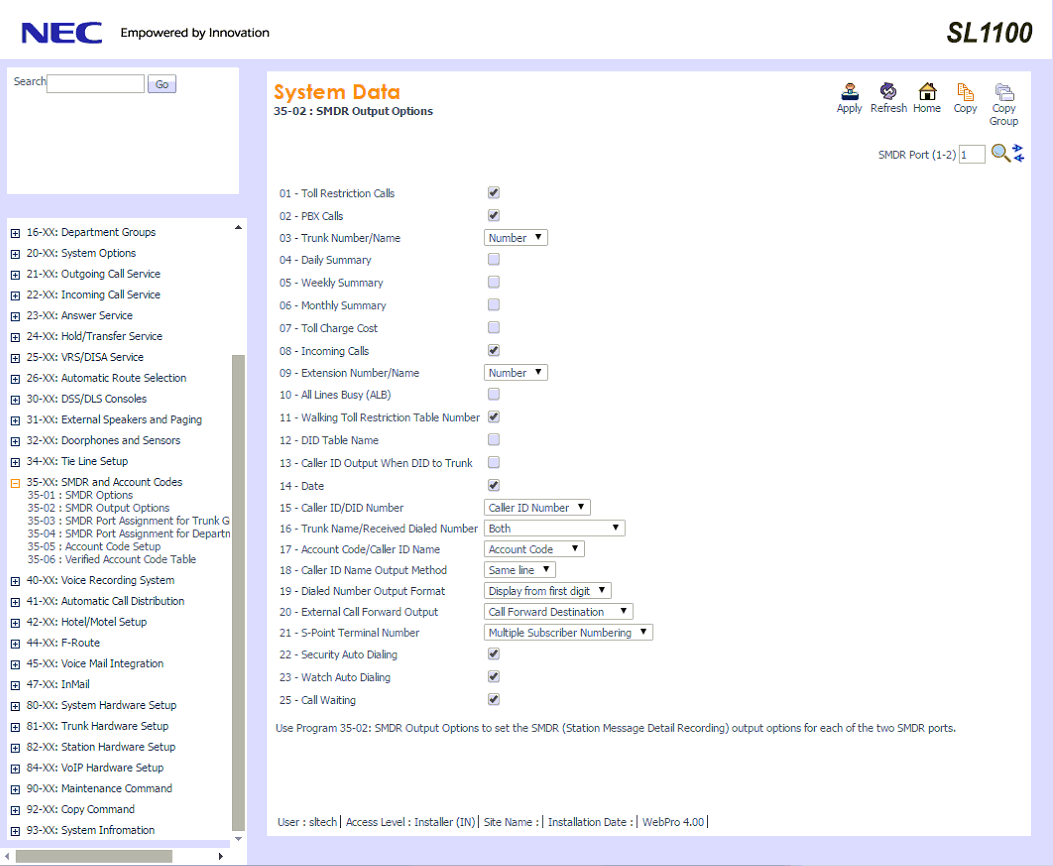

SMDR Output Settings

Configuring PBX Data Logger

Our software should work in the TCP client mode. It means that our software will initiate connection with the PBX and the PBX will work as a server. Add one or several PBX IP addresses here (the IP address of the SL1000 or SL1100 CPU). The port number should match the port that you have defined within the PBX (60010 in the example below).

TCP Client Mode - SL1000 or SL1100 CPU



Данные, извлекаемые PBX Data Logger

ОписаниеТип данныхИмя колонки
Тип звонкаstringCALL_TYPE
Время звонкаdatetimeCALL_TIME
Длительность звонкаdatetimeCALL_DURATION
Длительность звонка (с)integerCALL_DURATION_S
Набранный номерstringDIALED_PHONE
Вызывающий телефонstringCALLER_PHONE
Ожидания ответаdatetimeRING
