Avaya (Customized Output Format ACM 6.0+). Параметры соединения и формат данных SMDR/CDR


Данные ниже соответствуют только программе Advanced PBX Data Logger и могут быть не применимы для других программных продуктов.

Avaya Communication Manager 4.X

1. Change node-name ip and add a new entry that hosts our PBX Data Logger application.
2. Change ip-services add a new entry of CDR1, and fill out the rest of the values. If you go to page three, you may need to set the "Secure" or "Reliable" option to N.
3. Change system cdr and setup the link how you want it outputted.
4. Disable the switch for "Legacy" output.
5. Our software expects date in MMDDYY format if nothing else is specified explicitly.

Our software does not support Reliable Session Protocol. You need to select another protocol type in your PBX

Avaya Call Manager (CM) 6 and higher. Customized format.

This parser is designed for the following customized format.

Customized Output Format

Configuring ACM

System parameters

  1. Type change system-parameters cdr. Press Enter.
  2. The CDR System Parameters screen appears.
  3. In the Primary Output Format field, select customized.
  4. In the CDR Date Format field, select day/month.

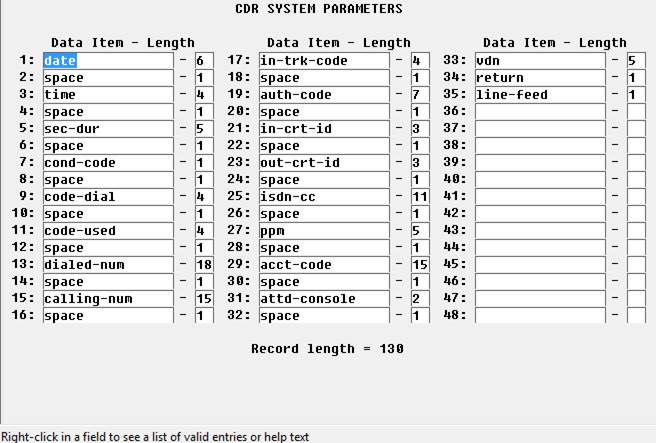

  5. On the page #2 define CDR fields descriptions as on the figure above.

IP services - Client mode (Preferred)

The PBX can also work in the TCP client mode. You may use this mode instead of the TCP server mode.

  1. Type list node-names all.
  2. Press Enter.
  3. Add a new node with the following settings.
  4. Type - IP
  5. Name - pbxlogger
  6. IP Address - 192.168.10.33 (this is the IP address where Advanced PBX Data Logger is installed. The computer with the logger must have a static IP address)
  1. Type display ip-services.
  2. Press Enter.
  3. Verify or change the settings for the CDR1 service.
  4. Enabled - Y.
  5. Reliable Protocol - N.
  6. Local port - 0.
  7. Remote node - pbxlogger.
  8. Remote port - 5555.

IP services - Server mode

  1. Type display ip-services.
  2. Press Enter.
  3. Verify the settings for the CDR1 service.
  4. Enabled - Y.
  5. Reliable Protocol - N.
  6. The following suggested settings instruct the PBX to work in the TCP Server mode.
  7. Local port - 5555 (you may use any other port number above 1024. But you must specify the same port number in Advanced PBX Data Logger).
  8. Remote node - Any.
  9. Remote port - 0.

Настройка логгера в режиме TCP клиента

Наша программа должна работать в режиме TCP клиента. Это означает, что логгер сам инициирует подключение с АТС, которая работает в режиме сервера. Добавьте один или несколько IP адресов вашей АТС ((none)). Номер порта должен соответствовать номеру порта, установленному в настройках АТС или производителем (в этом примере - 5555).

1. Добавьте новую конфигурацию с источником данных типа TCP, если не сделали это ранее.

Тип интерфейса TCP/IP

2. Настройте параметры TCP подключения как показано ниже.

Режим TCP клиента - Avaya CM

192.168.1.220

5555

192.168.1.220:5555

Настройка Advanced PBX Data Logger как TCP сервер

PBX Data Logger должен быть настроен в режиме TCP сервера и прослушивать адрес 0.0.0.0:5555 (см. ниже). IP адрес 0.0.0.0 позволяет принимать данные по всех сетевым интерфейсам на компьютере. Номер порта должен соответствовать номеру порта, установленному в настройках АТС или производителем.

1. Добавьте новую конфигурацию с источником данных типа TCP (если не сделали это прежде).

TCP/IP Data Interface

2. Настройте параметры TCP подключения как показано ниже.

TCP Server Mode for Avaya CM

5555

5555

Выбор правильного модуля-парсера для Avaya (Customized Output Format ACM 6.0+)

Выбор парсера для (none)

Avaya (Customized Output Format ACM 6.0+)

Avaya (Customized Output Format ACM 6.0+)

Данные, извлекаемые PBX Data Logger

ОписаниеТип данныхИмя колонки
Время звонкаdatetimeCALL_TIME
Длительность звонка (с)integerCALL_DURATION_S
Condition codestringCALL_TYPE
НаправлениеstringDIRECTION
Access code usedstringFLAG1
Access code dialedstringFLAG2
Набранный номерstringDIALED_PHONE
Вызывающий телефонstringCALLER_PHONE
РасширениеstringEXT
Incoming Линия codestringTRUNK
Код авторизацииstringAUTH
Incoming circuit IDstringFLAG4
Outgoing circuit IDstringFLAG5
ISDNstringFLAG7
Periodic Pulse MeteringstringPPM
Acount codestringACC
Attendant consolestringFLAG6
VDN Расширение numberstringVDN
